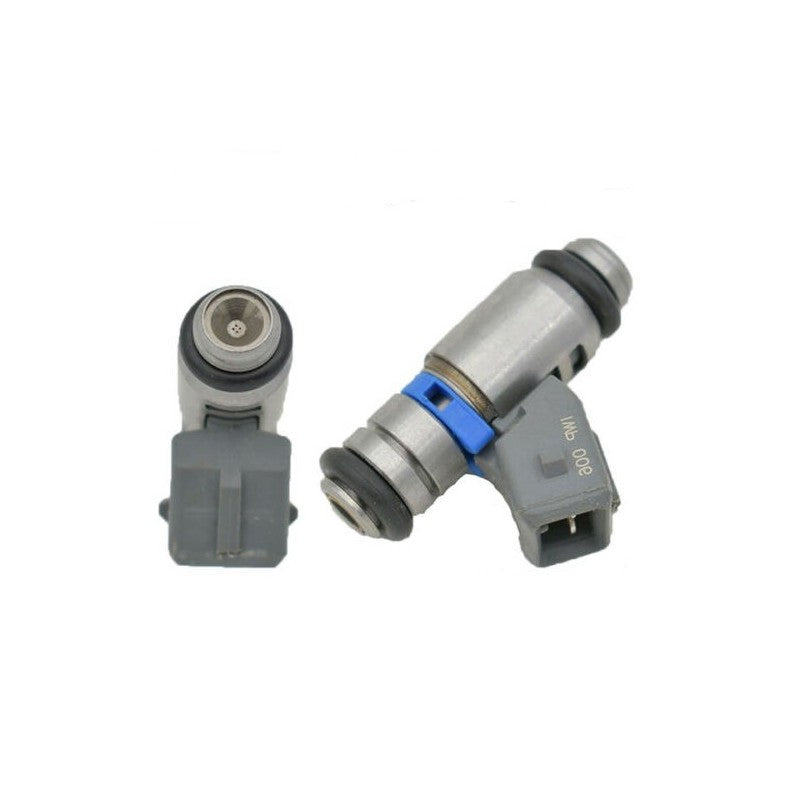

Pico Style Fuel Injector 226cc IWP006C

Pico Style fuel injectors are commonly used in throttle body applications due to their robust reliable operation and compact dimensions.

The injector has a stainless steel body, a fuel-resistant plastic connector, martensitic stainless steel internal valve and an electromagnet with a low carbon content stainless steel armature.

The electrical connection to the control unit is via a Mini-Timer plastic plug.

All Pico fuel injectors are tested in house for quality assurance.

Technical Details

Pressure range .......................................... 0.3 to 0.5 MPa
Static flow ................................................. 226cc/min
Driver current ............................................ 0.8 A
Spray type ................................................ multihole
Spray shape ............................................. 45 degree split stream
Power supply ............................................. 8 to 16 V
Operating temperature range.................... -30 to 110 °C
Connector type ......................................... AMP Junior 2 ways minitimer
Weight ................................................................... 35 g
