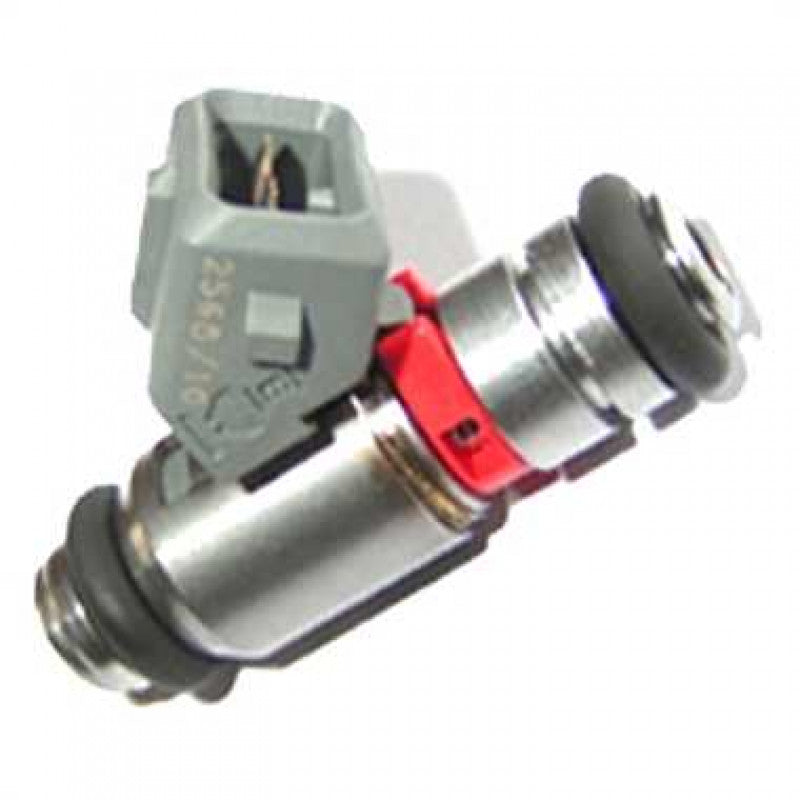

Pico Style Fuel Injector 158cc/min Pencil Stream IWP023C

Pico Style fuel injectors are commonly used in throttle body applications due to their robust reliable operation and compact dimensions.

The injector has a stainless steel body, a fuel-resistant plastic connector, martensitic stainless steel internal valve and an electromagnet with a low carbon content stainless steel armature.

The electrical connection to the control unit is via a Mini-Timer plastic plug.

All Pico fuel injectors are tested in house for quality assurance.

Technical Details

• Pressure range .......................................... 0.3 to 0.5 MPa
• Static flow ................................................. 158cc/min (1.8 g/sec N-Heptane)
• Driver current ............................................ 0.8 A
• Spray type ................................................ multihole
• Spray shape ............................................. 15 degree pencil stream
• Power supply ............................................. 8 to 16 V
• Operating temperature range.................... -30 to 110 °C
• Connector type ......................................... AMP Junior 2 ways minitimer
• Weight ................................................................... 35 g
