IWP069 Fuel Injector 490cc
IWP069 Fuel Injector 490cc

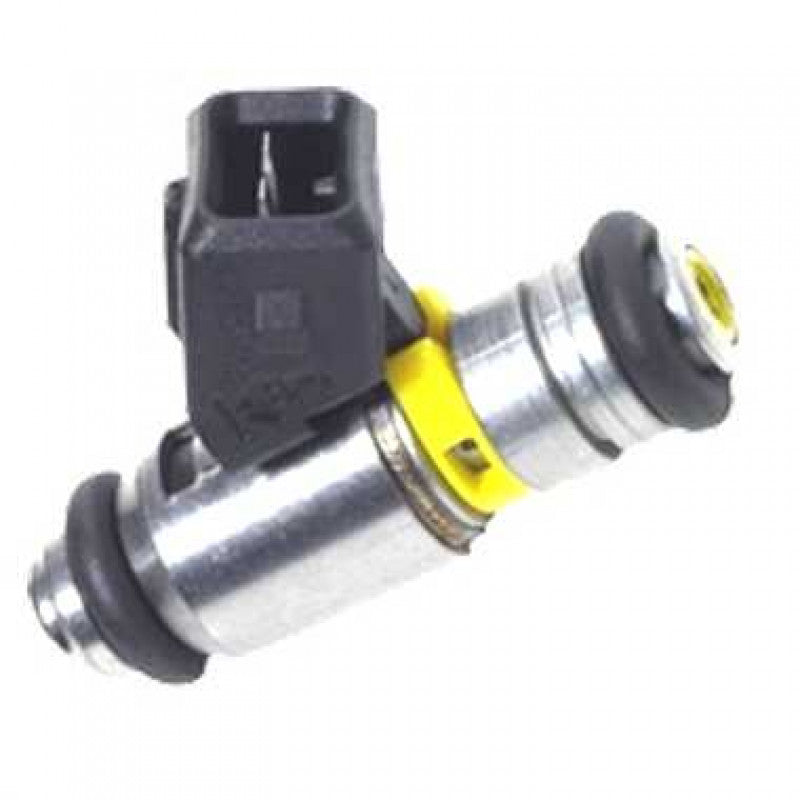

The characteristics of the injector are a fast pulse response, high precision, high dynamic range and optimum fuel atomization. These are achieved by a high performance ON-OFF actuating electromagnet with opposing expansion poles that moves an internal injector valve on high-precision ground cylindrical slides, and a high precision nozzle. The injector has a stainless steel body, a fuel-resistant plastic connector, martensitic stainless steel internal valve and an electromagnet with a low carbon content stainless steel armature.
The electrical connection to the control unit is via a Mini-Timer plastic plug.
Applications
- 996R
- 998
- 998S
- 749
- 999
Also used on various Mercruiser inboards
Technical Data
Pressure range .......................................... 0.3 to 0.5 MPa
Static flow ................................................. 490cc/min
Driver current ............................................ 0.8 A
Spray type ................................................ multihole
Spray shape ............................................. 60 degree single stream
Power supply ............................................. 8 to 16 V
Operating temperature range.................... -30 to 110 °C
Connector type ......................................... AMP Junior 2 ways minitimer
Weight ...................................................... 35 g
