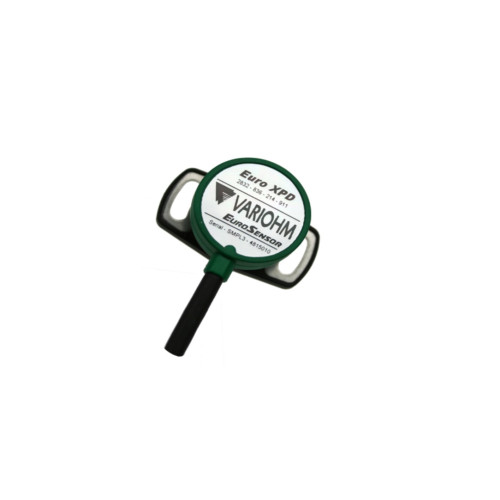

Variohm XPD Non-Contact Throttle Position Sensor

This model bolts directly to either end of any Jenvey throttle body in place of the TP11.

Features

8 mm D-Shaft Rotary Sensor
Hall Effect non-contact technology
Long life - extremely robust
Comes programmed for 110 deg angle
IP68 protection
Selectable mounting options
Redundant output

Mechanical

Typical Life Cycle >50 million movements (restriction by mechanics)
Torque < 0.1 Ncm
Measuring range 360º redundant, signal 1 cw, signal 2 ccw
Housing High grade temperature resistant plastic
D-Shaft Nylon 66

Environmental

Operating temperature -40°C to +125°C (Short term 150ºC)

Vibration 5...2000 Hz; Amax = 0.75 mm;
amax = 20g to IEC 60068-2-6
IP rating IP68 (minimum)

Electrical

Supply Voltage 5V +/- 0.5V
Output signal Ratiometric 5%...95% of supply (+/-25mv of specified
electrical output range for both start & end voltage)
Independant linearity +/- 0.5% of each signal range
Isolation resistance 200 MΩ (500 VDC, 1 bar, 2s)
Repeatability <= 0.2% (dependent on mounting tolerances)
Electrical connection See ordering code/wiring diagram
Cable type Raychem Spec 55, 24 AWG

Sleeving - Raychem DR25
