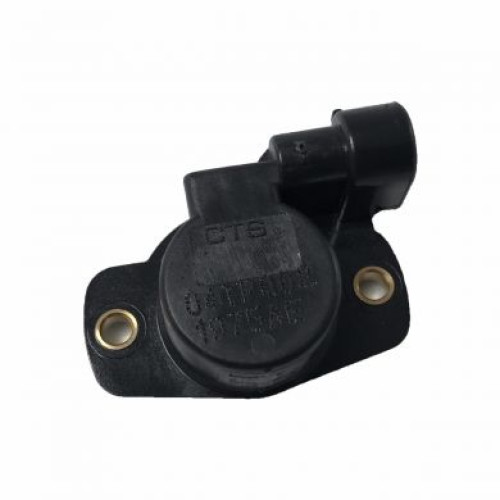

Marelli PF1C Throttle Position Sensor
Brand:
Product Code:
PF1C
Availability:
27
Weight:
0.20kg
Dimensions:
10.00cm x 5.00cm x 2.00cm
Marelli PF1C Throttle Position Sensor
Features
Housing .................................................... PBT
Power supply ................................................. 5 Vdc
Connector .........................................Metripack 3 way
Mechanical travel ......................................122° +/- 8°
Mounting holes spacing ............................... 40 mm
Resistance.................................................. 1.2 Kohm
Usable electrical travel..............................105° +/- 3
Accuracy .................................. +/- 3 %
Temperature range..........................-30 > +125 °c
Vibration (In the range 60 > 1000hz)........20g
